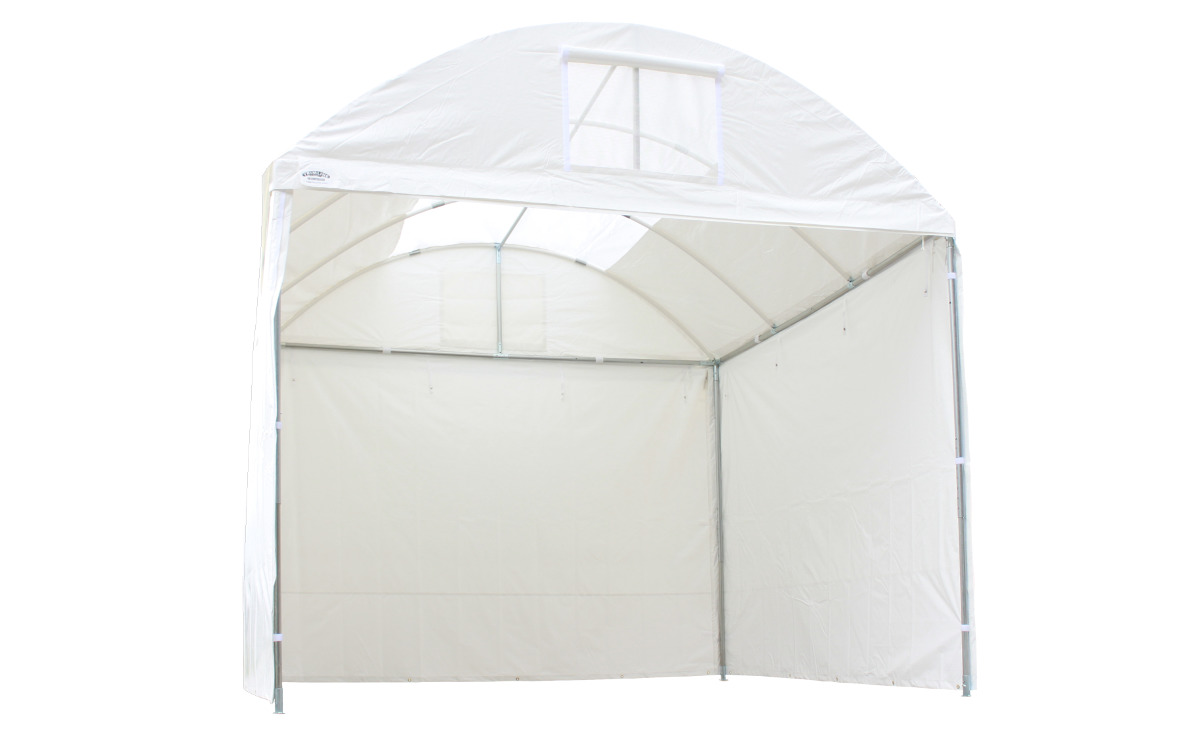

Bright lighting and full weather protection inside the spacious TrimLine Canopy. The TrimLine Canopy boasts a wide range of high quality details to ensure that your work is well protected and shown to full advantage in any situation. The most professional canopy on the market!

TrimLine Canopy
MeshPanel & SoftWalls





Specifications

Sizes 10 ft. x 10 ft., 10 ft.x 15 ft., 10 ft. x 20 ft.
Standard wall height 7 ft. at minimum setting
Tall wall heights 8 ft. , 9 ft. at minimum setting
Leg height adjustment 1 3/4" intervals, 12" total
Roof Peak height28" above wall height
SidewallsFully zippered, full set included for complete weather protection
SkyLightFrosty vinyl for diffused light; 60" wide x full length of canopy
Heat/Wind Vents2, open and close from inside or outside of canopy
Roof and Walls 11 oz Vinyl, Certified flame resistant
Zippers #10 marine grade
Rafters PVC, self straightening for easy transport
Frame1" galvanized steel stock, 17 gauge, with snap-button connections
Maximum pole section length61" Long
Connecting Hardware Zinc-plated steel, snap-button and thumbscrew attachment
Anchoring Kit10x10 - 2 Ground Screws, 4 Spikes; 10x15 or 10x20 - 4 Ground Screws, 8 Spikes
Canopy weight (10x10, basic unit) Poles: 70#, Hardware: 15#, Roof and Walls: 45#
Guarantee3 years, workmanship and materials



Popular Setup Examples

This artist shows off one of the most popular combinations we sell. They have added a 30" Awning at the front of the 10x10 booth for additional protection from both sun and rain, plus a set of StaBars for extra stability.


10x10 TrimLine $ 1560
30" Awning $ 200
StaBar Kit $ 135
Total $ 1895



Mike Behr's impressive 10x20 booth with soaring awnings and tall wall heights makes a huge impression.


10x20 TrimLine at 8 ft. wall height $ 2830
54" Double Awning $ 425
54" single Awning $ 210
Awning Corner Cloth $ 95
Awning Zipper Strips - 4 at 8 ft. $ 88
Total $ 3524



This beautiful corner booth includes a hidden rear DoorWall for easy access to storage space which is protected by an Awning. A FrenchWall paired with a Universal DoorWall screens the rear door as well as keeping the public on their side of the display cases!

10x10 TrimLine $ 1560
30" Awning $ 200
StaBars (Corner Kit) $ 87
Door Wall Frame $ 55
54" Awning $ 210
Universal DoorWall upgrade $ 75
Total $ 2187
10 ft. wide MeshPanel $ 225
7 ft. wide DoorWall MeshPanel $ 210
3 ft. FrenchWall Frame + Panel $ 260
Total for MeshPanels $ 695


Dustin Harris keeps his 8 ft. wall height canopy fairly simple, but adds a few conveniences to make travel and set up easier.

10x10 TrimLine, 8 ft. wall height $ 1750
StaBar Kit $ 135
Easy Riser Kit for solo set up $ 31
Carry Bag set for top and walls $ 60
Mesh Pole Bag (2 @ $ 54 ) $ 108
Total $ 2084

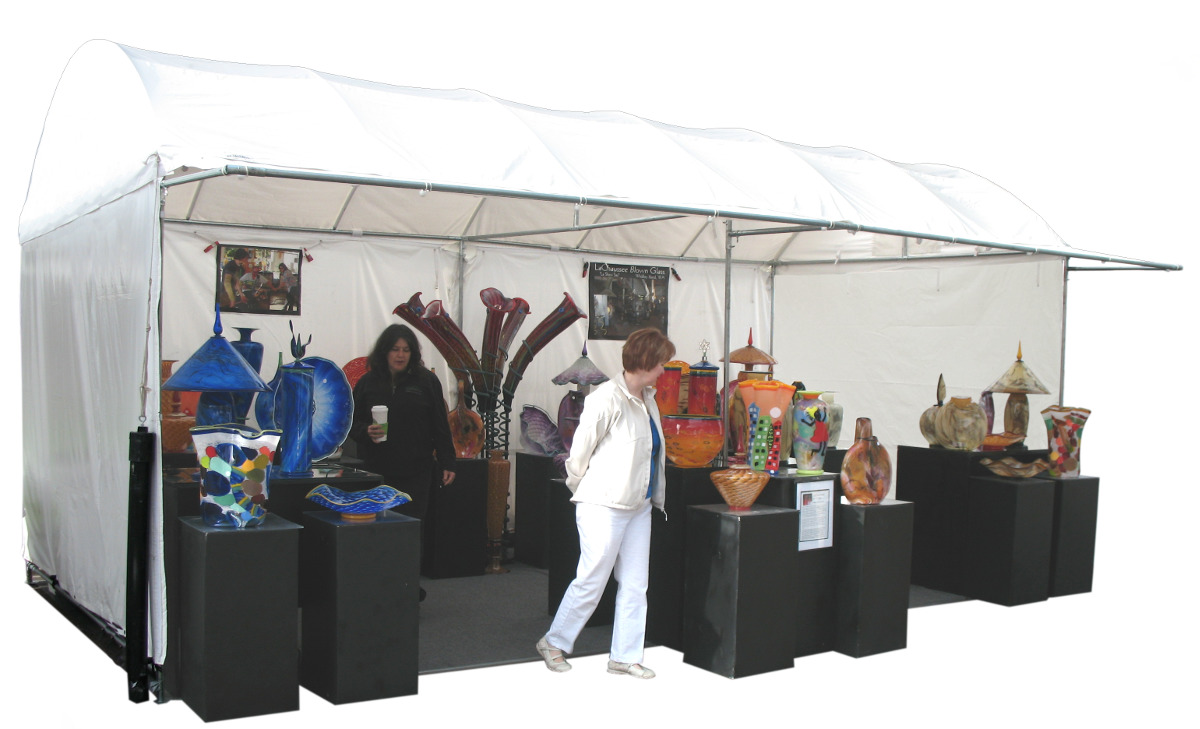

Dan and Joi LaChaussee's fine blown glass work is well protected inside a 10x20 TrimLine with a 30" Double Awning. StaBars are included at the 10x20 size.

10x20 TrimLine $ 2560
30" Double Awning $ 415
DoorWall Upgrade (1) $ 75
Total $ 3050
